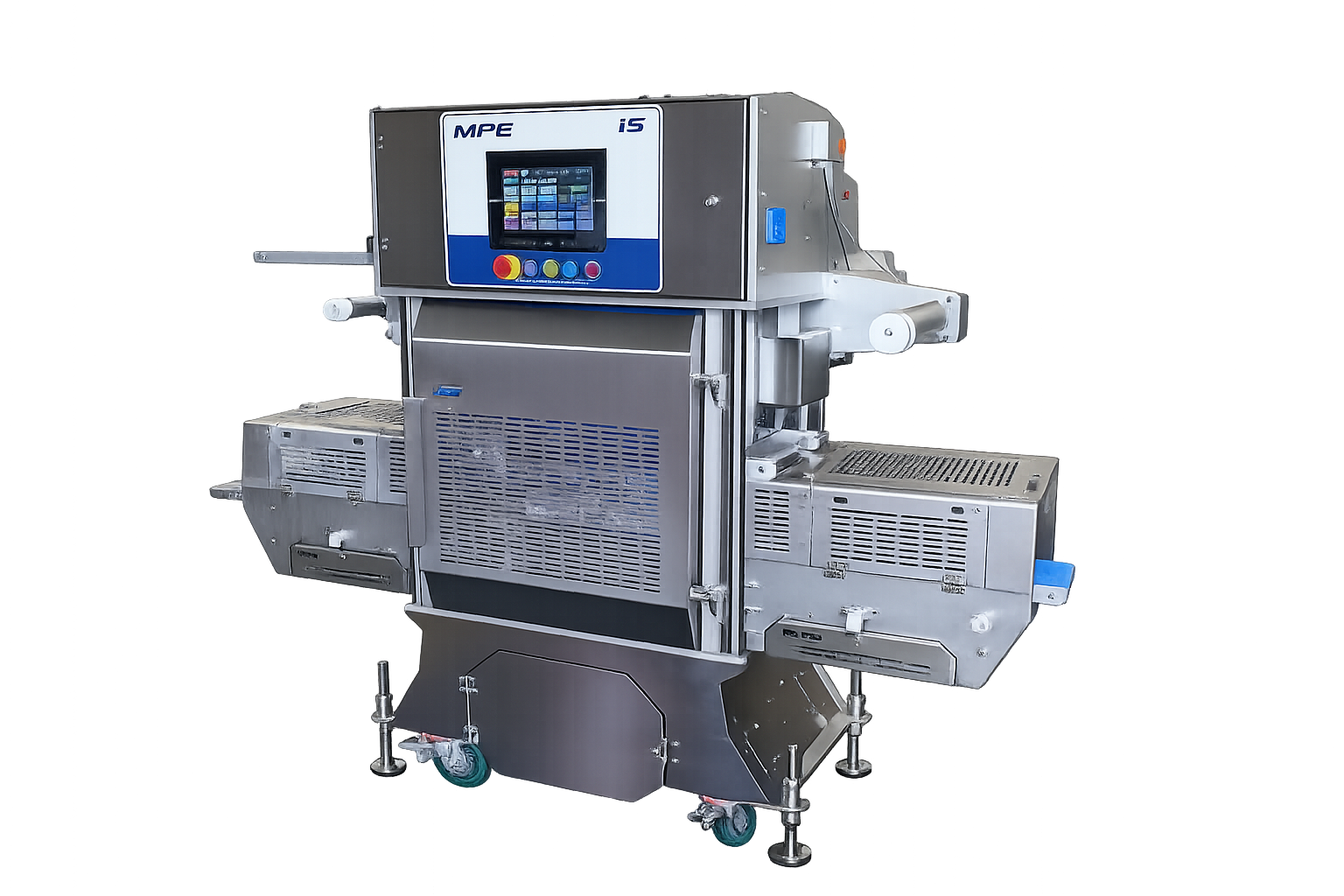

i5+
ALL ELECTRIC Advanced Automatic Inline Tray Sealer
Overview
The i5+ is an ALL ELECTRIC advanced automatic inline tray sealer designed for maximum seal force, reliability and energy efficiency. Featuring MPE’s E-RAM sealing technology, the system delivers superior performance with reduced maintenance requirements. The machine supports recipe-driven automatic setup, process control monitoring and seamless integration with ancillary equipment. Designed for modern production environments, the i5+ provides high throughput while maintaining excellent seal integrity and operational flexibility.
Specifications
Length
2360 mm
Width
925 mm
Height
2058 mm
Belt Height
850 mm
Power
416VAC 3P+N 32AMP
Remote Connection
WIFI or CAT 6
Max Tray Height
105 mm
Seal Only Speed
20 CPM
Gas Flush Speed
14 CPM
Tooling Impressions
1–4 impressions
Features
All-electric
Environmentally friendly design to reduce energy consumption.
E-RAM sealing technology
Maximum seal force with minimal maintenance and long service life.
MAX-PACK tray anomaly detection
Pre-empts tray anomalies prior to transfer.
Remote support ready
Remote viewing and technical support via wireless modem link.
High throughput
Up to 20 CPM seal-only / 14 CPM gas flush (application dependent).
RFID access control
User customisable RFID security access.
Key Features
- E-RAM sealing technology for maximum seal force and superior reliability / life-span
- Environmentally friendly ALL ELECTRIC design to reduce energy consumption
- MAX-PACK system that pre-empts tray anomalies prior to transfer
- Remote viewing and technical support via wireless modem link
- FREE direct software upgrades upon release
- User customisable RFID security access
- Recipe-driven automatic machine set up
- Process control monitoring
- Category 3 safety system
- Up to 20 cycles per minute with seal-only applications
- Gas flushing ready (cycles depending on product)
- 1–4 impression tooling (optional colour coding)
- Simplistic manual tool change
- Static tray guides and exterior transition plates
- Tray size check to stop machine for incorrect tray orientation
- Film snap detection system
- Active film torque system
- Intuitive and customisable HMI design
- Right-to-left configuration available
- Tray crush avoidance system (advanced design specifications)
- Quick-release modular conveyor system for cleaning and maintenance
- Ancillary equipment integration (coders, printers, depositors, vision systems etc.)
- Phase monitoring protection to prevent surge damage to electrical components
