i-r1

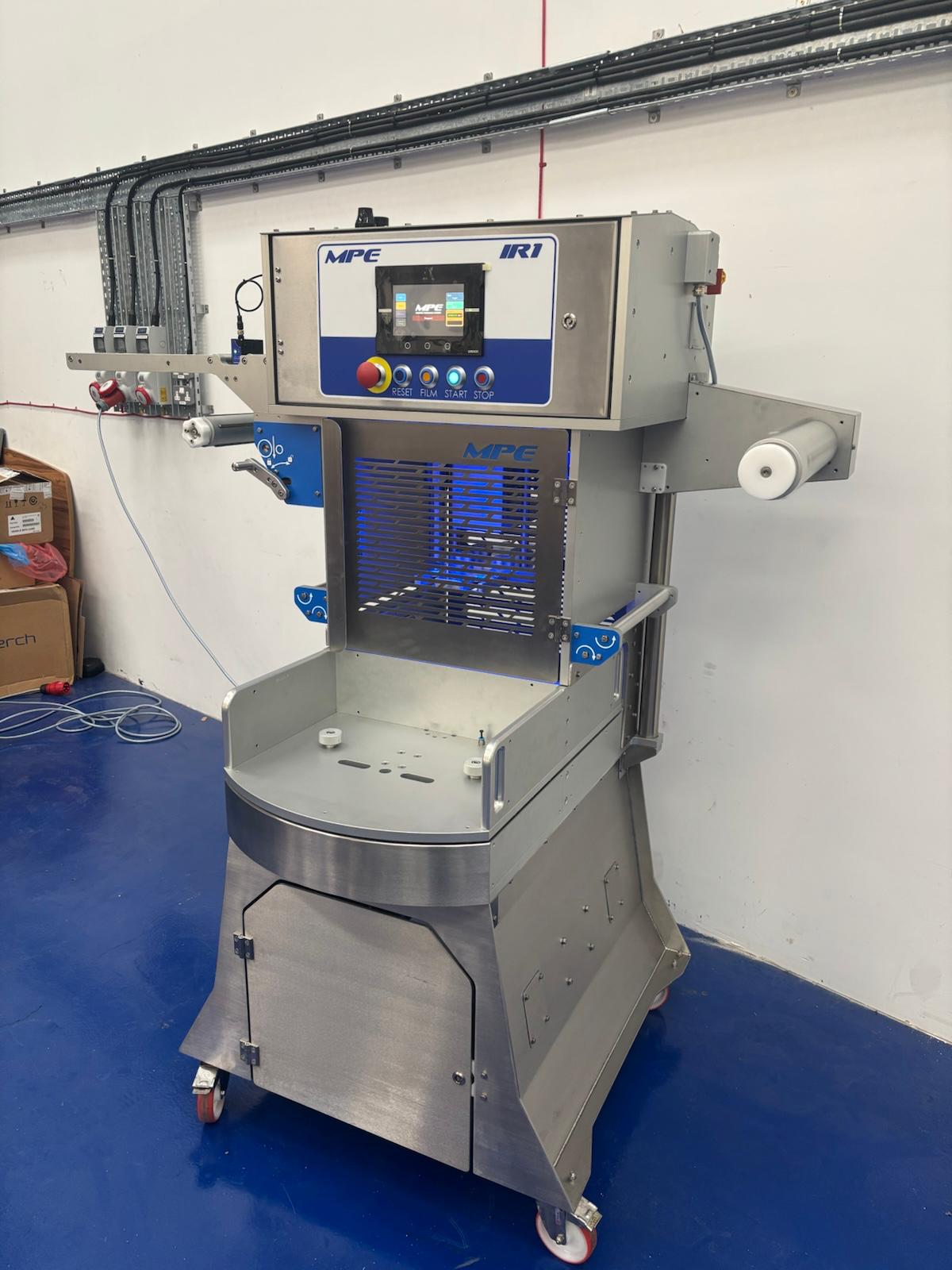

ALL ELECTRIC Semi-Automatic Rotary Tray Sealer
Overview
UK/Europe Specification Sheet
Specifications
Length
1795 mm
Width
1100 mm
Height
2000 mm
Table Height
914 mm
Power
415VAC 3P+N 16AMP
Remote Connection
WIFI or CAT 6
Max Tray Height
105 mm
Seal Only Speed
15 CPM
Gas Flush Speed
12 CPM
Tooling Impressions
1-4 impressions
Features
All-electric
Environmentally friendly ALL ELECTRIC machine designed to reduce energy consumption.
E-RAM sealing technology
Designed to give maximum seal force with minimum maintenance and superior reliability / life-span.
Remote support ready
Remote viewing and technical support via wireless modem link.
Throughput options
Up to 15 CPM seal-only; gas flushing ready (cycles depending on product).
Modular tooling
Supports 1-4 impression tooling with optional colour coding.
Key Features
- E-RAM sealing technology designed to give maximum seal force with minimum maintenance and superior reliability / life-span
- Environmentally friendly ALL ELECTRIC machine designed to reduce energy consumption
- Remote viewing and technical support via wireless modem link
- Free direct software upgrades upon release
- Recipe driven automatic machine set up
- Process control monitoring
- Category 3 safety system
- Up to 15 cycles per minute with seal only applications
- Gas flushing ready (cycles depending on product)
- 1-4 impression tooling with optional colour coding
- Simplistic manual tool change
- Film snap detection system
- Active film torque system
- Intuitive and customizable HMI design
- Ancillary equipment integration (coders, printers etc.)
- Phase monitoring protection to prevent surge damage to electrical components
